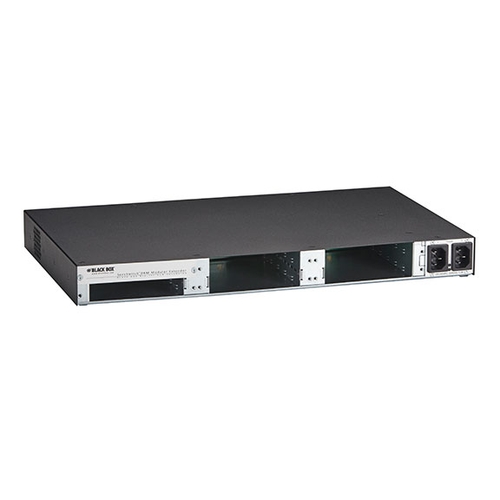

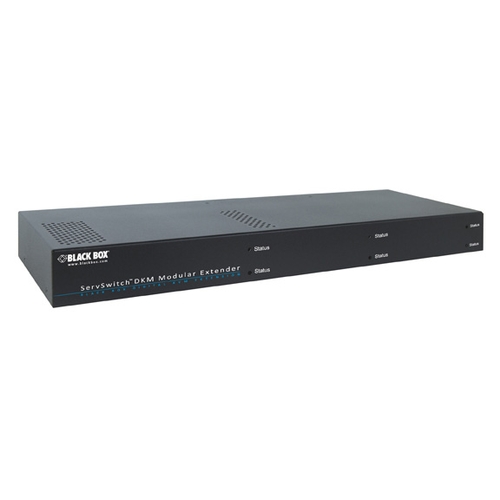

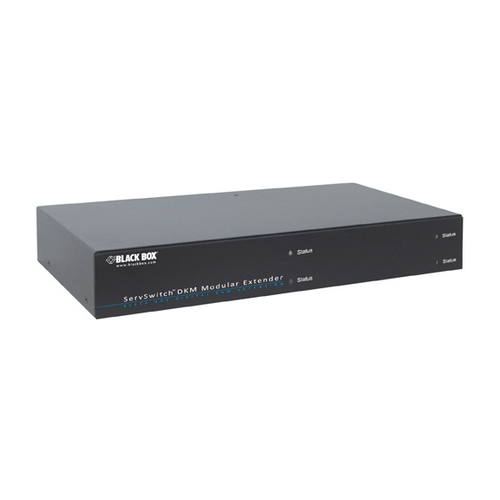

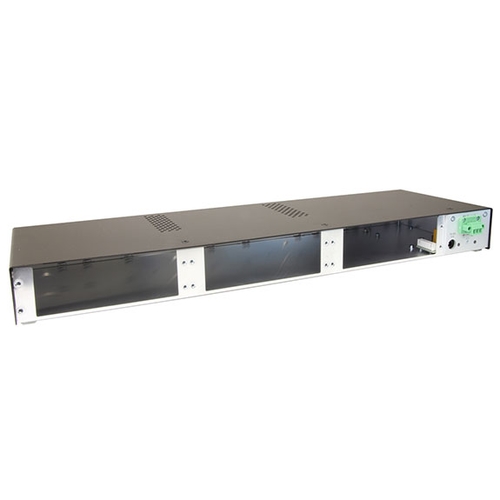

Photo may vary from actual product		Modular KVM Extender Housing Chassis - Power Supply, Redundancy Option Design your KVM Extender with the interfaces you need. Combine and extend multiple video and peripheral interfaces exactly to your needs. Use a chassis with transmitter modules on your CPU end and the corresponding chassis with receiver modules at your user station. Chassis available with 2-, 4-, 6- or 21 slots. Choose the cable media depending on your range requirements: CATx up to 140m, multi-mode up to 1000m, single-mode up to 10km. DisplayPort signals with 4K/60 resolution can be extended up to 1km over mulit-mofr ot 5km using single-mode cables. Pixel perfect resolution up to 2048 x 1152 SL DVI, DL DVI up to 2560 x 1600 (2x 2K), HDMI 1080p or DisplayPort up to 4K over the full distance. 24Bit color depth. Video options for DVI, Display Port, HDMI, SDI, VGA in, and many other analogue video inputs. Suitable for multi-video and high demanding video applications. Options for analogue & digital audio, RS-232 or RS-422 serial data, embedded USB 2.0 with 36 Mbps and transparent USB 2.0 with 480 Mbps. Various power options with AC and DC, internal and external power supplies, with or without redundancy. Local monitoring with separate splitter cable (ACXSPL12). Use them as standalone point-to-point KVM extenders or together with the DKM/DKM FX switching system. Warranty: 2 Year Double Diamond™ Warranty (Standard)

	Product				Code		Unit price		Quantity

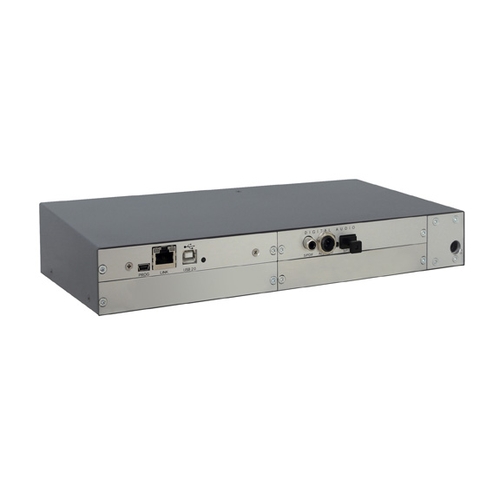

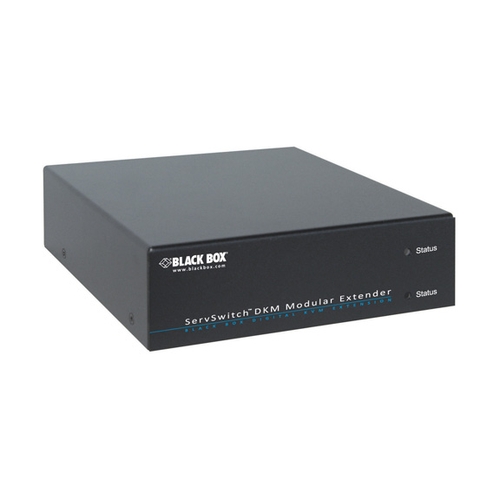

2 Slots

1 ext. power supply, no redundancy

DKM Modular Chassis

ACXMODH2-R2

On request

1 ext. power supply + ext. redundancy option

DKM Modular Chassis

ACXMODH2R-R2

On request

1 int. power supply + ext. redundancy option

DKM Modular Chassis

ACXMODH2R-P-R2

On request

1 int. 24VDC power supply + ext. redundancy option

DKM Modular Chassis

ACXMODH2R-P24

On request

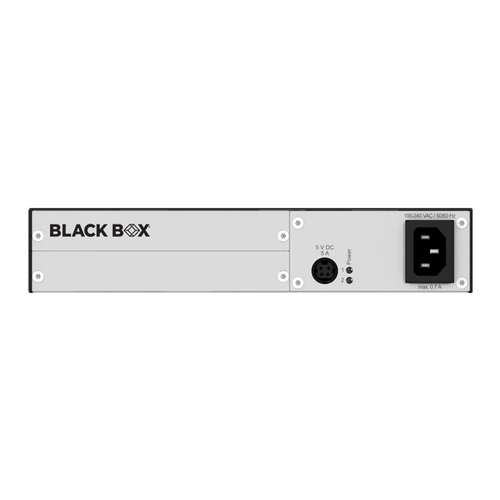

2 Slots Backplane

1 int. power supply + ext. redundancy option

DKM Modular Chassis

ACXMODH2FPAC-R2

On request

4 Slots

1 ext. power supply, no redundancy

DKM Modular Chassis

ACXMODH4-R2

On request

1 ext. power supply + ext. redundancy option

DKM Modular Chassis

ACXMODH4R-R2

On request

6 Slots

1 int. power supply + ext. redundancy option

DKM Modular Chassis

ACXMODH6R-R2

On request

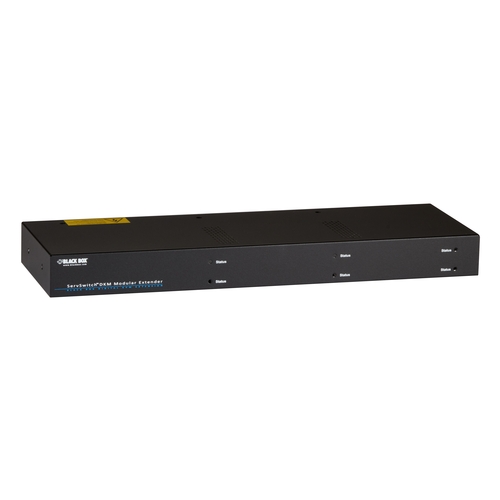

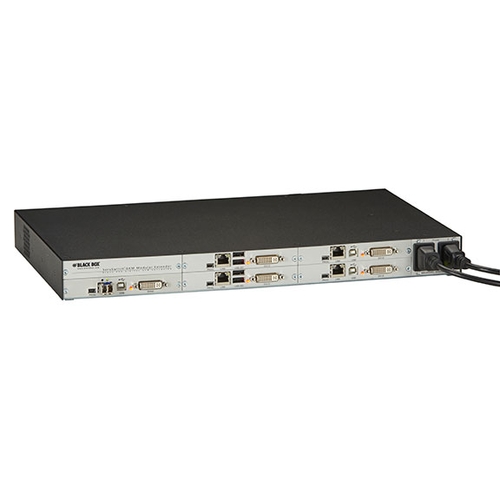

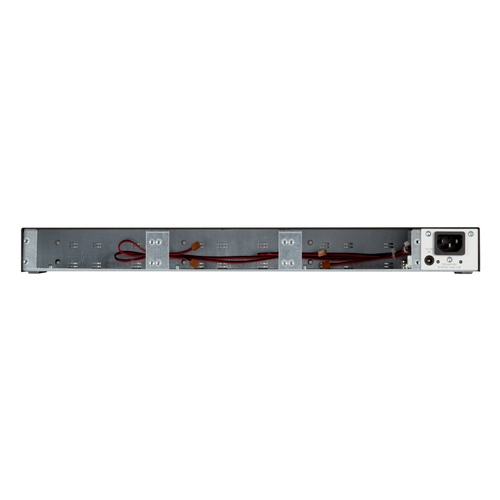

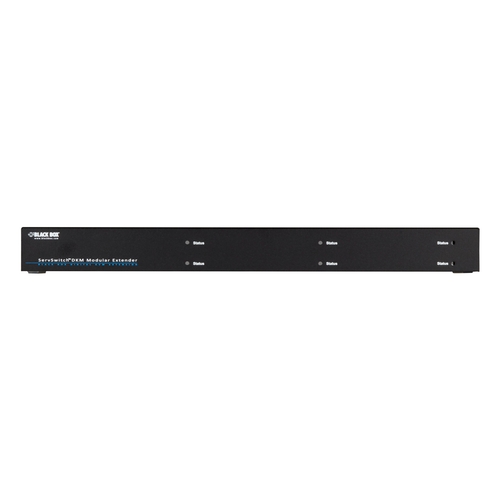

6 Slots Backplane

2 int. power supplies, rear

DKM Modular Chassis

ACXMODH6BPAC-R2

On request

2 int. power supplies, front

DKM Modular Chassis

ACXMODH6FPAC-R2

On request

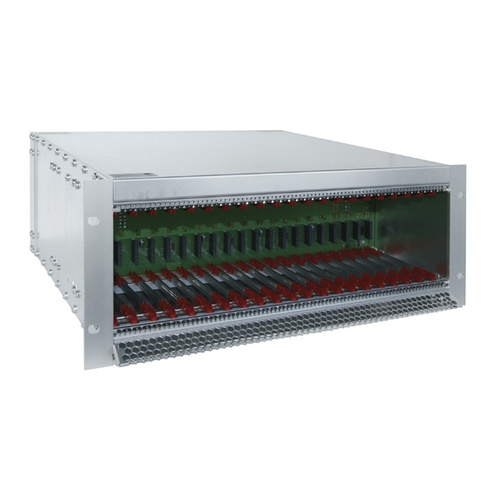

21 Slots

1 int. power supply + int. redundancy option

DKM Modular Chassis

ACXMODH21R

On request

Step 1:
Order the basic link modules module with DVI-D, DVI-I or HDMI video and two USB HID ports.
Step 2:
Choose the update modules for every additional signal, you intend to switch and expand over the DKM system.
Step 3:
Determine the appropriate chassis depending on your number of interface cards. Consider also free space for future expansion. Select one housing each for the transmitter and the receiver side. Choose a power option with or without redundancy.
Step 4:
Verify your application requirements with our product specialists for plausibility and quoting.

Our DKM Configurator will assist you in assembling Modular DKM Extenders and Modular DKM FX Switches according to your needs. It also allows you to add and request Compact DKM Extenders for your application. Click here to learn more.

Add to shopping basket

Accessories

	Product	Code	Unit price

DKM Modular Extender Upgrade Modules
	Upgrade Module - Transmitter, Balanced Audio	ACX1MT-BA-R2	On request
	Upgrade Module - Receiver, Balanced Audio	ACX1MR-BA-R2	On request
DKM Modular Basic Link Modules
	Basic Link Module - CATx, Receiver maritime use, (1) Single link DVI-D w/ link redundancy, 2x USB HID	ACX1MR-DHID-2C-SHIP	On request
	Basic Link Module - CATx, Receiver maritime use, (1) Single link DVI-D, 2x USB HID	ACX1MR-DHID-C-SHIP	On request
	Basic Link Module - CATx, Transmitter maritime use, (1) Single link DVI-D, 2x USB HID	ACX1MT-DHID-C-SHIP	On request
	DKM FX Modular KVM Extender Interface Card - Dual-Head, 4K30 DisplayPort 1.1 with Redundancy, USB HID, RJ45, CATx - CATx, Receiver, (1) DisplayPort 4K/30, USB HID	ACX2MR-DP11ATH-2C	On request
	DKM FX Modular KVM Extender Interface Card - Dual-Head, 4K30 DisplayPort 1.1 with Redundancy, USB HID, High-Speed Singlemode Fiber - Fibre, Receiver, (1) DisplayPort 4K/30, USB HID	ACX2MR-DP11ATH-2S	On request
	DKM FX Modular KVM Extender Interface Card - Dual-Head, 4K30 DisplayPort 1.1, USB HID, RJ45, CATX - CATx, Receiver, (1) DisplayPort 1.1, USB HID	ACX2MR-DP11ATH-C	On request
	DKM FX Modular KVM Extender Interface Card - Dual-Head, 4K30 DisplayPort 1.1, USB HID, Singlemode Fiber - Fibre, Receiver, (1) DisplayPort 4K/30, USB HID	ACX2MR-DP11ATH-SM	On request
	DKM FX Modular KVM Extender Interface Card - Dual-Head, 4K30 DisplayPort 1.1, USB HID, High-Speed Singlemode Fiber - Fibre, Receiver, (1) DisplayPort 4K/30, USB HID	ACX2MR-DP11HS-SM	On request
	DKM FX Modular KVM Extender Interface Card - Dual-Head, 4K30 DisplayPort 1.1 with Redundancy, USB HID, RJ45, CATx - CATx, Transmitter, (1) DisplayPort 4K/30, USB HID	ACX2MT-DP11ATH-2C	On request
	DKM FX Modular KVM Extender Interface Card - Dual-Head, 4K30 DisplayPort 1.1 with Redundancy, USB HID, High-Speed Singlemode Fiber - Fibre, Transmitter, (1) DisplayPort 4K/30, USB HID	ACX2MT-DP11ATH-2S	On request
	DKM FX Modular KVM Extender Interface Card - Dual-Head, 4K30 DisplayPort 1.1, USB HID, RJ45, CATX - CATx, Transmitter, (1) DisplayPort 4K/30, USB HID	ACX2MT-DP11ATH-C	On request
	DKM FX Modular KVM Extender Interface Card - Dual-Head, 4K30 DisplayPort 1.1, USB HID, Singlemode Fiber - Fibre, Transmitter, (1) DisplayPort 4K/30, USB HID	ACX2MT-DP11ATH-SM	On request
	DKM FX Modular KVM Extender Interface Card - Dual-Head, 4K30 DisplayPort 1.1, USB HID, High-Speed Singlemode Fiber - Fibre, Transmitter, (1) DisplayPort 4K/30, USB HID	ACX2MT-DP11HS-SM	On request
	Basic Link Module - Fibre, Receiver, (1) DisplayPort 1.2 (4K60), 2x USB HID	ACX2MR-DP4KHS-SM	On request
	Basic Link Module - Fibre, Transmitter, (1) Dual link DVI 2.5Gbps w/ link redundancy, 2x USB HID	ACX2MT-DLHS-2S	On request
	Basic Link Module - Fibre, Transmitter, (1) DisplayPort 1.2 (4K60), 2x USB HID	ACX2MT-DP4KHS-SM	On request
	Basic Link Module - CATx, Receiver, no video, 4x USB 2.0 transparent 480Mbps	ACX1MR-U23-C	On request
	Basic Link Module - Fibre, Receiver, no video, 4x USB 2.0 transparent 480Mbps	ACX1MR-U23-SM	On request
	Basic Link Module - CATx, Receiver, (1) Single link DVI or VGA out w/ link redundancy, 2x USB HID	ACX1MR-VDHID-2C	On request
	Basic Link Module - Fibre, Receiver, (1) Single link DVI or VGA out w/ link redundancy, 2x USB HID	ACX1MR-VDHID-2S	On request
	Basic Link Module - CATx, Receiver, (1) Single link DVI or VGA out, 2x USB HID	ACX1MR-VDHID-C	On request
	Basic Link Module - Fibre, Receiver, (1) Single link DVI or VGA out, 2x USB HID	ACX1MR-VDHID-SM	On request
	Basic Link Module - CATx, Transmitter, no video, 4x USB 2.0 transparent 480Mbps	ACX1MT-U23-C	On request
	Basic Link Module - Fibre, Transmitter, no video, 4x USB 2.0 transparent 480Mbps	ACX1MT-U23-SM	On request
	Basic Link Module - CATx, Transmitter, (1) Single link DVI-D or VGA in w/ link redundancy, 2x USB HID	ACX1MT-VDHID-2C	On request
	Basic Link Module - Fibre, Transmitter, (1) Single link DVI-D or VGA in w/ link redundancy, 2x USB HID	ACX1MT-VDHID-2S	On request
	Basic Link Module - CATx, Receiver, (2) Single link DVI-D w/ link redundancy, 2x USB HID	ACX2MR-DHH-2C	On request
	Basic Link Module - Fibre, Receiver, (1) DisplayPort 1.1 w/ link redundancy, 2x USB HID	ACX2MR-DPH-2S	On request
	Basic HS Link Module - Fibre, Receiver, (1) DisplayPort 2.5Gbps, 2x USB HID	ACX2MR-DPHS-SM	On request
	Basic Link Module - CATx, Transmitter, (2) Single link DVI-D w/ link redundancy, 2x USB HID	ACX2MT-DHH-2C	On request
	Basic Link Module - CATx, Transmitter, (1) Dual link DVI-D w/ link redundancy, 2x USB HID	ACX2MT-DLH-2C	On request
	Basic Link Module - Fibre, Transmitter, (1) DisplayPort 1.1 w/ link redundancy, 2x USB HID	ACX2MT-DPH-2S	On request
	Basic HS Link Module - Fibre, Transmitter, (1) DisplayPort 2.5Gbps, 2x USB HID	ACX2MT-DPHS-SM	On request
	Basic Link Module - CATx, Receiver, (1) HDMI w/ link redundancy, 2x USB HID	ACX1MR-HDMI-2C	On request
	Basic Link Module - Fibre, Receiver, (1) HDMI w/ link redundancy, 2x USB HID	ACX1MR-HDMI-2S	On request
	Basic Link Module - CATx, Transmitter, (1) HDMI w/ local access + link redundancy, 2x USB HID	ACX1MT-HDM2-2C	On request
	Basic Link Module - CATx, Transmitter, (1) HDMI w/ link redundancy, 2x USB HID	ACX1MT-HDMI-2C	On request
	Basic Link Module - CATx, Receiver, (1) HDMI w/ link redundancy, 2x USB HID, int. 2-Port KVM Switch	ACX1MR-HDSW-2C	On request
	Basic Link Module - CATx, Receiver, (1) Dual link DVI-D, 2x USB HID	ACX2MR-DLH-C	On request
	Basic Link Module - CATx, Transmitter, (2) Single link DVI-D, 2x USB HID	ACX2MT-DHH-C	On request
	Basic Link Module - Fibre, Transmitter, (2) Single link DVI-D, 2x USB HID	ACX2MT-DHH-SM	On request
	Basic Link Module - CATx, Transmitter, (1) Dual link DVI-D, 2x USB HID	ACX2MT-DLH-C	On request
	Transmitter Card - Fibre, Transmitter, (1) Dual link DVI-D, 2x USB HID	ACX2MT-DLH-SM	On request
	Basic Link Module - CATx, Transmitter, (1) Single link DVI-D, 2x USB HID	ACX1MT-DHID-C	On request
	Basic Link Module - CATx, Transmitter, (1) Single link DVI-D or VGA in, 2x USB HID	ACX1MT-VDHID-C	On request
	Basic Link Module - CATx, Receiver, (1) Single link DVI-D, 2x USB HID	ACX1MR-DHID-C	On request
	Basic Link Module - CATx, Transmitter, (1) Single link DVI-D w/ link redundancy, 2x USB HID	ACX1MT-DHID-2C	On request
	Basic Link Module - CATx, Receiver, (1) Single link DVI-D w/ link redundancy, 2x USB HID	ACX1MR-DHID-2C	On request
	Basic Link Module - CATx, Transmitter, (1) HDMI, 2x USB HID	ACX1MT-HDMI-C	On request
	Basic Link Module - CATx, Transmitter, (1) HDMI w/ local access, 2x USB HID	ACX1MT-HDM2-C	On request
	Basic Link Module - CATx, Receiver, (1) HDMI, 2x USB HID	ACX1MR-HDMI-C	On request
	Basic Link Module - CATx, Receiver, (1) HDMI, 2x USB HID, int. 2-Port KVM Switch	ACX1MR-HDSW-C	On request
	Basic Link Module - CATx, Transmitter, (1) HDMI, none	ACX1MT-HDO-C	On request
	Basic Link Module - CATx, Receiver, (1) HDMI, none	ACX1MR-HDO-C	On request
	Basic Link Module - Fibre, Transmitter, (1) Single link DVI-D, 2x USB HID	ACX1MT-DHID-SM	On request
	Basic Link Module - Fibre, Transmitter, (1) Single link DVI-D or VGA in, 2x USB HID	ACX1MT-VDHID-SM	On request
	Basic Link Module - Fibre, Receiver, (1) Single link DVI-D, 2x USB HID	ACX1MR-DHID-SM	On request
	Basic Link Module - Fibre, Transmitter, (1) Single link DVI-D w/ link redundancy, 2x USB HID	ACX1MT-DHID-2S	On request
	Basic Link Module - Fibre, Receiver, (1) Single link DVI-D w/ link redundancy, 2x USB HID	ACX1MR-DHID-2S	On request
	Basic Link Module - Fibre, Transmitter, (1) HDMI, 2x USB HID	ACX1MT-HDMI-SM	On request
	Basic Link Module - Fibre, Transmitter, (1) HDMI w/ local access, 2x USB HID	ACX1MT-HDM2-SM	On request
	Basic Link Module - Fibre, Receiver, (1) HDMI, 2x USB HID	ACX1MR-HDMI-SM	On request
	Basic Link Module - Fibre, Transmitter, (1) HDMI, none	ACX1MT-HDO-SM	On request
	Basic Link Module - Fibre, Receiver, (1) HDMI, none	ACX1MR-HDO-SM	On request
DKM Modular Extender Upgrade Modules
	Upgrade Module - Transmitter, 2x USB HID	ACX1MT-HID	On request
	Upgrade Module - Receiver, 2x USB HID	ACX1MR-HID	On request
	Upgrade Module - Transmitter, 2x Embedded USB 2.0 (36Mbps)	ACX1MT-EU	On request
	Upgrade Module - Receiver, 2x Embedded USB 2.0 (36Mbps)	ACX1MR-EU	On request
	Upgrade Module - Transmitter, bidirect. analog Audio + RS232	ACX1MT-AR	On request
	Upgrade Module - Transmitter, bidirect. analog Audio + RS232 + (2) USB 2.0 (36Mbps)	ACX1MT-ARE	On request
	Upgrade Module - Receiver, bidirect. analog Audio + RS232 + (2) USB 2.0 (36Mbps)	ACX1MR-ARE	On request
DKM Modular Extender Converter Modules
	DKM Modular Extender Converter Modules - Transmitter, USB 2.0	ACX1MT-G2-EU	On request
	DKM Modular Extender Converter Modules - Transmitter, SDI, VGA, analog Video in - DVI-D out	ACX1MT-SDI	On request
Rack/Mount Kit
	19" Rackmount Ears for 2-Slot DKM Modular Extenders	ACXMODHEAR2	Sign in
	19" Rackmount Ears for 2-Slot redundant DKM Modular Extenders	ACXMODHEAR2P	Sign in
	19" Rackmount Ears for 4-Slot DKM Modular Extenders	ACXMODHEAR4	Sign in
	19" Rackmount Ears for 6-Slot Chassis	ACXMODHEAR6-FPAC	Sign in
	19" Rackmount Shelf for 2-/4-/6-slot DKM Modular Extenders	ACXMODH-RMK	Sign in
	Table/Wallmount Kit for 2-/4-slot DKM Modular Extenders	ACXMODH-DMK	Sign in
	Table/Wallmount Kit for 6-slot DKM Modular Extenders	ACXMODH-R2-TMK	Sign in
	Wallmountkit for modular DKM Extender Chassis (-R2 series only)	ACXMODH-WMK	Sign in
Power Supply
	Redundant Power Supply for 2-Slot Chassis ACXMODH2R	ACXMODH2-PS	Sign in
	Redundant Power Supply for 2-Slot Chassis ACXMODH2FPAC-R2 (4-pin)	ACXMODH2FPAC-R2-PS	On request
	Redundant Power Supply for 4-Slot Chassis ACXMODH4R	ACXMODH4-PS	Sign in
	Redundant Power Supply for 6-Slot Chassis ACXMODH6R	ACXMODH6-PS	Sign in
	Redundant Power Supply for 21-Slot Chassis ACXMODH21R	ACXMODH21-PS	Sign in
Option/Software/Firmware
	Optional Fan-Module for ACXMODH6BPAC/FPAC-R2	ACXMODH6FAN	Sign in
DKM Modular Extender FXC Switching Module
	DKM Modular Extender FXC Switching Module - 8 port CATx	ACXC8-M	On request
DKM FX Repeater Module
	DKM FX Repeater Module - CATx & Fiber, Cross Repeater, 1 Link	ACX1M-CS	On request
	DKM FX Repeater Module - CATx & Fiber, Cross Repeater, 2 Links	ACX1M-2C2S	On request

Add to shopping basket

In-depth info Technical data

Package content

The DKM extender setup provides the widest range of possible combinations, which makes it easy to customize it for your specific application.

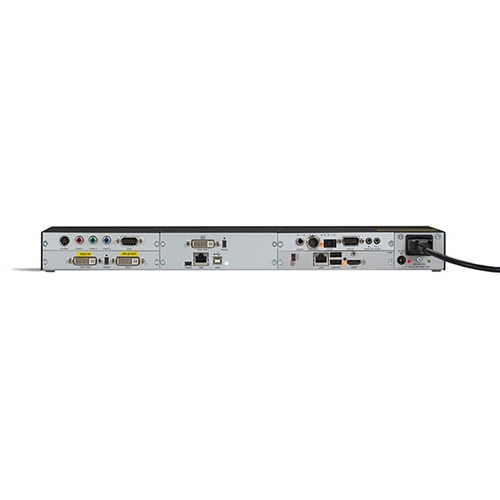

The DKM Modular KVM Extenders are comprised of modular housing chassis with 2, 4, 6, or 21 slots, basic link modules and upgrade modules for your peripheral needs. Special converter modules provide a video conversion for analog video input formats and DVI output. It also possible to integrate an 8-port DKM FXC switching module into the DKM Extender housing to save even more space.

DKM Modular Extender Housings

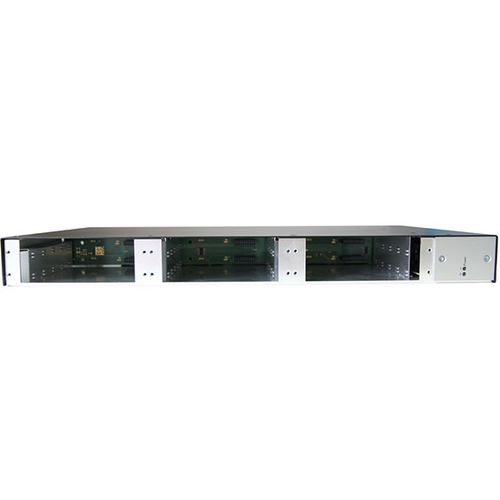

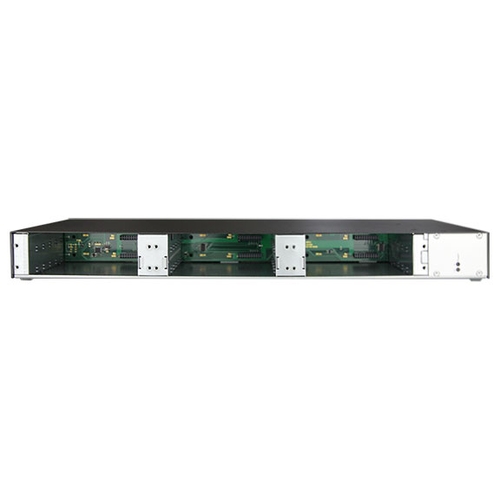

The housings featured on this page are available with desktop chassis for two, four, or six modules or use a 19” rack mount chassis for 21 modules. For mission critical applications, all housings are available with redundant power. DC-power with 12-, 24- or 48VDC for industrial usage can be supplied, too.

Each housing must be equipped with at least one basic link module. Mix and match the modules according to your needs. Choose a housing with transmitter modules for your computer end and a housing with the corresponding receiver modules at your user station.

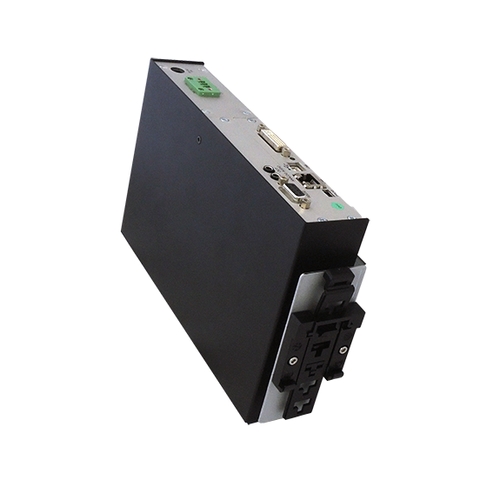

The desktop housings can be mounted with optional kits on DIN-rails, walls, under the table as well as in 19” racks. No matter which chassis you select, all ports are arranged on the front side of the chassis to ensure comfortable access while installing and maintaining them.

Basic Link Modules
Each housing must be equipped with at least one Basic Link Module. These modules provide a video port and USB HID ports as well as the cable connection to the remote end. Choose from versions with CATx, fiber at 1 Gbps, high-speed fiber at 2.5 Gbps or redundant links depending on your distance and bandwidth requirements. The modules are available with a variety of video interfaces like Single Link or Dual Link DVI-D, DVI-I with VGA input and DVI-D output, HDMI or DisplayPort.
Use a 2.5 Gbps high-speed module for demanding video applications. The basic link modules with redundancy offer two link connections. Use these modules to establish backup channels or to split a video channel for two users. Mix and match the basic link modules within the housing according to your needs.

Add further peripherals via the Upgrade Modules
The Upgrade Modules carry their signals over the cable connections provided by the Basic Link Modules to save on infrastructure needs. They provide a large variety of peripheral interfaces like USB HID, PS/2, embedded USB 2.0 at 36 Mbps, serial RS-232 or RS-422 data, bidirectional analog audio and uni-, or-bidirectional digital audio. If you need to extend high-speed USB 2.0 devices like Wacom tablets use the transparent USB 2.0 module providing speeds up to 480 Mbps. However this module requires on exception an additional link cable. In short also USB 3.0 modules will be available. Mix and match the options according to your application needs.

Analogue Video Sources
The DKM Converter Modules allow the integration of analog video formats like component and composite video as well as industrial video formats like EGA, CGA, MDA. In addition, there are options for SDI, HD-SDI or 3G-SDI available. The modules convert these signals into digital DVI-D signals being transmitted over the distance without any losses.

KVM Switching Capabilities via DKM FXC Switching Modules
The DKM FXC Switching Modules provides real space savings. These modules offer the full feature set of the DKM FXC Matrix Switches (ACXC08/ACXC08F) but in a very compact design occupying only two slots in your DKM extender chassis. Build them into the transmitter housing to allow your remote user instant switching between up to eight computers. Choose from version with wither up to eight CATx connections to the user and computers or eight fibre ports.

Excellent video quality
Thanks to the digital transmission of the video signal without any losses in the quality, images are as sharp as if they were directly attached to the workstations. The enhanced video compression algorithms support 24-bit color depth for smooth colour gradients up to resolutions of 4K @ 60Hz over the full distance. For highly demanding video applications choose the high speed models. They offer with 2.5GB double video bandwidth.

Applications
The Modular DKM Extenders work as a point-to-point extension. In larger switched extensions they can be combined with the DKM FX/FXC Matrix Switches to build up a free scalable and flexible KVM switching matrix across the enterprise.

Free Technical Support
The large variety of modules offers countless combinations for all kinds of extensions. Please contact our Free Technical Support to discuss your needs and find the best configuration for your individual application.

Computer Interface Dependent on Modular Cards
Chassis:
Size —
ACXMODH2-R2/ACXMODH2R-R2: 14,5W x 14.6D x 4.4H cm
ACXMODH2R-P-R2/ACXMODH2R-P12/24/48: 22,1W x 14.6D x 4,4H cm
ACXMODH4-R2/ACXMODH4R-R2: 29,2W x 15,6D x 4.3H cm
ACXMODH6R-R2: 44,4W x 14,9D x 4.3H cm
ACXMODH6BPAC-R2/ACXMODH6FPAC-R2: 44.5W x 26.9D x 4.3H cm
ACXMODH21R: (4U) 44,4W x 40D x 17,2H cm
ACXMODH2FPAC-R2: 1.7-in. H x 8.7-in. W x 7.2-in. D (43.18 x 200.98 x 182.88-mm)

Power —
ACXMOD2-R2, ACXMODH2R-R2: external power supply, 90-240 VAC, 50/60Hz, Output: 5VDC / 3A, external redundancy option;
ACXMODH2R-P-R2: internal power supply, 90-240 VAC, 50/60Hz, Output: 5VDC / 3A, external redundancy option;
ACXMODH2R-P12: internal power supply, 12VDC / 1.3 A, Output: 5VDC / 3 A, external redundancy option;
ACXMODH2R-P24: internal power supply, 24VDC / 0.7 A, Output: 5VDC / 3 A, external redundancy option;
ACXMODH2R-P48: internal power supply, 48VDC / 0.35 A, Output: 5VDC / 3 A, external redundancy option;
ACXMOD4-all: external power supply, 90-240 VAC, 50/60Hz, Output: 5VDC / 5A;
ACXMODH6R-R2: internal power supply, 100-240 VAC, 50/60Hz, Output 5VDC /8A;
ACXMODH6R-P12: internal power supply, 12VDC / 2.2 A, Output: 5VDC / 5 A, external redundancy option;
ACXMODH6R-P24: internal power supply, 24VDC / 1.2 A, Output: 5VDC / 5 A, external redundancy option;
ACXMODH6R-P12: internal power supply, 48VDC / 0.6 A, Output: 5VDC / 5 A, external redundancy option;

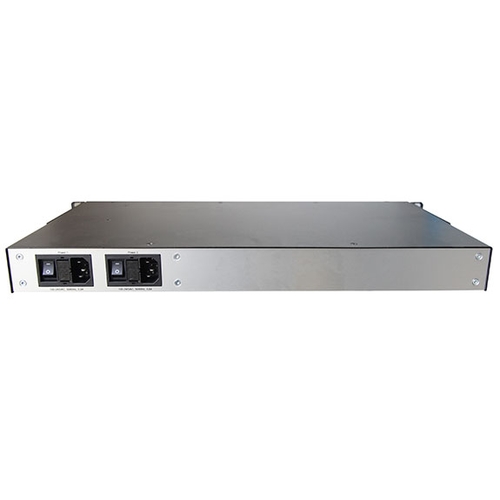

ACXMODH6BPAC-R2/ACXMODH6FPAC-R2: internal power supply, 100-240 VAC / 1.3 A, 50/60Hz, Output: 5VDC / 10A
ACXMODH21R: internal power supply, 90-240 VAC / 5.3 A, 50/60Hz, Output 5VDC / 10A
ACXMODH2FPAC-R2:
Built in Power Supply;
Input: 100 - 240 VAC, 50/60 Hz;
Output: 5VDC, 5 Amps, 25W

Temperature —
Operating temperature : 5 to 45 °C (41 to 113 °F)
Storage temperature : -25 to 60 °C (-13 to 140 °F)

Weight —
ACXMOD2: 0,3 kg without modules;
ACXMOD4: 0,45 kg without modules
ACXMODH6R: 0,85 kg without modules;
ACXMODH21R: 4 kg without modules
ACXMODH2FPAC-R2 : 3.7 lbs (1.7kg)

Modules:
Connectors—
ACX1MT-DHID-C: (1) DVI-D, (1) USB Type B, (1) RJ-45, (1) USB Type B mini (upgrade)
ACX1MT-DVHID-C: (1) DVI-I, (1) USB Type B, (1) RJ-45, (1) USB Type B mini (upgrade)
ACX1MT-U2-C: (1) USB Type B, (1) RJ-45, (1) USB Type B mini (upgrade)
ACX1MT-DHID-SM: (1) DVI-D, (1) USB Type B, (2) LC, (1) USB Type B mini (upgrade)
ACX1MT-DHS-SM: (1) DVI-D, (1) USB Type B, (2) LC, (1) USB Type B mini (upgrade)
ACX1MT-DVHID-SM: (1) DVI-I, (1) USB Type B, (2) LC, (1) USB Type B mini (upgrade)
ACX2MT-DHID-SM: (2) DVI-D, (1) USB Type B, (4) LC, (1) USB Type B mini (upgrade)
ACX1MT-U2-SM: (1) USB Type B, (2) LC, (1) USB Type B mini (upgrade)
ACX1MT-HID: (1) USB Type B
ACX1MT-EU: (1) USB Type B
ACX1MT-AR: (2) 3.5mm audio, (1) DB9 F (serial)
ACX1MT-ARE: (2) 3.5mm audio, (1) USB Type B
ACX1MT-ARD: (1) RCA, (1) Toslink, (1) Mini XLR, (2) 3.5mm Audio, (1) DB9 F (serial)
ACX1MT-ARH: (1) DB9 F (serial), (2) 2.5mm audio, (1) USB Type B
ACX1MT-DA: (1) RCA, (1) Toslink, (1) Mini XLR
ACX1MT-DAH: (1) RCA, (1) Toslink, (1) Mini XLR, (1) USB Type B
ACX1MT-DAX: (2) RCA, (2) Toslink, (2) Mini XLR
ACX1MT-DAE: (2) RCA, (2) Toslink, (2) Mini XLR, (1) USB Type B
ACX1MT-EGA: (1) HD15, (1) DVI-D
ACX1MT-RGB: (1) DVI-I (1) DVI-D, (1) RJ-10 programing

ACX1MR-DHID-C: (1) DVI-D, (2) USB Type A, (1) RJ-45, (1) USB Type B mini (upgrade)
ACX1MR-DVHID-C: (1) DVI-I, (2) USB Type A, (1) RJ-45, (1) USB Type B mini (upgrade)
ACX1MR-U2-C: (4) USB Type A, (1) RJ-45, (1) USB Type B mini (upgrade)
ACX1MR-DHID-SM, ACX1MR-DHS-SM: (1) DVI-D, (2) USB Type A, (2) LC, (1) USB Type B mini (upgrade)
ACX1MR-DVHID-SM: (1) DVI-D, (2) USB Type A, (2) LC, (1) USB Type B mini (upgrade)
ACX2MR-DHID-SM: : (2) DVI-D, (2) USB Type A, (4) LC, (1) USB Type B mini (upgrade)
ACX1MR-U2-SM: (4) USB Type A, (2) LC, (1) USB Type B mini (upgrade)
ACX1MR-HID: (2) USB Type A
ACX1MR-EU: (2) USB Type A
ACX1MR-AR: (1) DB9 Bu (serial), (2) 3.5mm audio
ACX1MR-ARE: (2) 3.5mm audio, (2) USB Type A
ACX1MR-ARD: (1) RCA, (1) Toslink, (1) Mini XLR, (2) 3.5mm Audio, (1) DB9 F (serial)
ACX1MR-ARH: (1) DB9 F (serial), (2) 2.5mm audio, (2) USB Type A
ACX1MR-DA: (1) RCA, (1) Toslink, (1) Mini XLR
ACX1MR-DAH: (1) RCA, (1) Toslink, (1) Mini XLR, (2) USB Type A
ACX1MR-DAX: (2) RCA, (2) Toslink, (2) Mini XLR
ACX1MR-DAE: (2) RCA, (2) Toslink, (2) Mini XLR, (2) USB Type A
ACXMODH2FPAC-R2 :
(1) IEC320 Main Power Inputs;
(1) Locking 2.5mm x 5.5mm Barrel Connector (spare power input);
(2) Onboard Connectors to Interface with TX/RX Cards;
Output: IEC C14, 2.5mm x 5.5mm barrel redundant/spare

Size—
ACX1MT-DVHID-C, ACX1MT-DVHID-SM: (2) Slots
All other: (1) slot

TAA compliant — YES
